Description
UETB206 bearing is a 30mm bore tapped-base normal-duty mounted bearing unit that utilizes a Tru-Loc device for securing onto a 30mm shaft. UETB206 pillow block bearings have a unique housing designed for narrow applications with radial loads acting in the direction of the support surface. Our superior UETB206 bearing with a 30mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UETB206 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Tapped base UETB206 pillow block bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UETB206 bearings are manufactured to industry standard dimensions; they also interchange with just about any brand out there. Contact our customer support team for further information or to get a quote on our UETB206 bearings, and we will be happy to assist you!

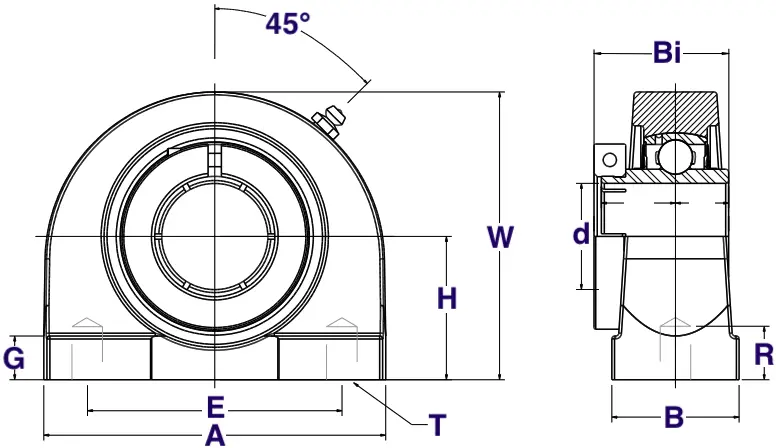

UETB206 Bearing Dimensions
- Part #: UETB 206
- Shaft Diameter (d): 30mm
- Dimension (H): 42.9mm
- Dimension (A): 102.0mm
- Dimension (E): 76.2mm
- Dimension (B): 38.0mm
- Dimension (R): 16.0mm
- Dimension (G): 12.0mm
- Dimension (W): 86.0mm
- Dimension (Bi): 39.8mm
- Dimension (N): 15.9mm
- Dimension (M): 22.2mm
- Bolt Used: 7/16-14
- Dynamic Load Rating (kN): 19.47
- Static Load Rating (kN): 11.43
- Bearing Insert: UE 206
- Housing Number: TB 206
- Weight (kg): 1.3
